Smart Film Switchable Electrochromic Privacy Frost Tempered
Laminated Glass For Partition Wall
Description of Switchable Smart Glass:
PDLC (polymer dispersed liquid crystal film) polymer dispersive
liquid crystal film (PDLC) is the core material of smart glass. It
is a functional film made of polymer dispersed liquid crystal
technology and flexible ITO as the carrier. The light adjusting
film can control the order of liquid crystal molecules through

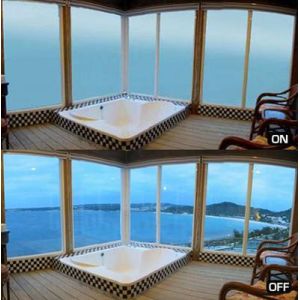

voltage, so as to control the transparency of the product. It can
switch the transparent or frosted state according to the needs and
hobbies. The operation is simple, the service life is up to 20
years, and the power consumption per square meter is about 5 watts.
In addition, it can also isolate ultraviolet rays up to . At the
same time, the smart film is a very good back projection imaging
carrier.
Smart glass belongs to special architectural decoration glass, also
known as electronic window curtain, which can control the
transparency of glass through voltage. Its main working principle
is to install a layer of liquid crystal light adjustment film
(PDLC) between the glass. This is a product based on film
technology. The liquid crystal molecules are attached to the ITO
substrate, and the electrodes on the transparent edge introduce
electricity flow, by turning on the power to change the arrangement
of the liquid crystal molecules, thereby controlling the
transparency of the glass. The smart glass can freely switch the
permeability of the space. It is a curtain that can be remotely
controlled at will, and privacy protection is under your control.
Structure of Switchable Smart Glass:
- Switchable Laminated Glass
- Switchable Insulated glass
- Switchable Vacuum glass
- Switchable Fire-rated glass
- Switchable glass window with frame and hardware
- Switchable glass door with frame and hardware
- Switchable Bullet-proof glass
Parameter of Switchable Smart Glass:
| Power ON | Power OFF |
| Light transmittance: | Parellel light: | >=66% | <=1.5% |
| Visible light: | Common Film | >=83% | >=55% |
| High Transmittance Film | >=88% | >=57% |
| Haze: | <=3% | >=90% |
| Response time: | <10ms | <200ms |
| Viewing angle: | >=150° |
| Voltage: | Input: | AC220V, AC110V, DC24V, DC12V |
| Operating voltage: | AC48V |
| Threshold voltage: | <=20V |
| Frequency: | Operating frequency: | 30~400Hz |
| Optimum operating frequency: | 50Hz |
| Power consumption: | <=5W/m2 |
| Continued opening time: | >80,000h |
| Continued ON and OFF times: | >80,000,000 |
| Insulation Resistance: | >2M Ω |
| Operating temperature: | Between -10℃ and 65 ℃. |
| Storage temperature: | Between -20℃ and 80 ℃. |
| Thickness: | 0.65mm |
| Max dimension: | Individual piece | <=1.5 * 3.2 meters |
| Roll | 0.93/1.2/1.5(W) x 20/30/50M(L) |
| Adhesion for silicon glue & glass: | 20g/mm |
| Adhesion for PDLC film: | 50g/mm |
Features of Switchable Smart Glass:
- Privacy partition: The biggest function of smart glass is the
privacy protection function, which can control the transparent and
opaque state of the glass at any time, and have a strong spatial
extension effect, privacy, openness, and freedom.
- Sound insulation and noise reduction: The smart film in the middle
of the glass has a blocking effect on noise, and the anti-noise
ability is increased by more than 20% compared with ordinary glass.
- Heat insulation and sun protection: The smart film in the middle of
the dimming glass can insulate and block more than 99% of
ultraviolet rays and 98% of infrared rays. Shield some infrared
rays to reduce heat radiation and transmission. And shielding
ultraviolet rays can protect indoor furnishings from fading and
aging due to ultraviolet radiation, and protect personnel from
diseases caused by direct ultraviolet rays.
- Safety and explosion-proof: The middle-layer smart film can tightly
absorb glass fragments when the glass is hit by high intensity,
effectively preventing glass splashing and hurting people.
- Touch projection: Smart glass is still this very excellent
projection hard screen. In a suitable light environment, if you
choose a high-lumen projector, the projection imaging effect is
very clear and outstanding. (Recommended to use rear projection
imaging method)
Application of Switchable Smart Glass:
- Privacy / security glazing
- Windows / glass partitions
- Counters / furniture
- Electronic blinds / doors
- Video projection screen
Application Market of Switchable Smart Glass:
- Residential
- Commercial
- Interior design
- Advertisement
- Education
- Leisure
- Luxury
- Healthcare
- Retail
- Hospitality
- Corporate
Our competitive:
- Good quality and Fast Delivery
- Professional and Good Service
- Best Service before and after sales
- Best technical support from our professional team with years
experience
- Professional seaworthy wooden crate packing for LCL and client
receive it safely
- Our smart glass could be produced with two methods, with autoclave
and with oven
- Our smart glass has the best transparency when power on , least
haze, and it has a good privacy function when power off
- Both flat and bent smart glass could be provided as per design
request
Other products we provide:
-- Tempered glass, heat strengthened glass, heat soaked glass;
-- Smart glass ( or privacy glass, switchable glass ),
self-adhesive PDLC film;
-- LOW E glass, laminated glass, insulated glass, vacuum glass;
-- Anti-reflection glass, Anti Glare Glass;
-- Decorative Glass;
-- Silver mirror, copper free mirror, LED mirror
About Us:
VALUES GLASS, a continuous growing company, located in Shanghai, China.
Since year of 2005, we stepped on furnish glasses;
Since year of 2010, our ranges are expanded to building glasses;
Since year of 2014, VALUES GLASS in Shanghai is established to meet
business growth;
VALUES GLASS, aim to deliver ADDED VALUE for partners by:
-- Competitive price;
-- Quality products;
-- On time delivery;
-- Efficient communication;
VALUES GLASS, contribute to partners’ success with our expertise & knowhow!
Packaging & Delivery:
Standard export package: Plywood or wooden crate
Corner protector and protective film is available
Crates shall be banded by steel bands
